Arc Fault Monitor Installation at an Industrial Facility

Arc flash is one of the most serious hazards in any industrial electrical environment. It happens fast - faster than a circuit breaker can respond - and the consequences can be severe. That's exactly why arc fault monitoring systems exist, and getting them installed correctly is not something you cut corners on.

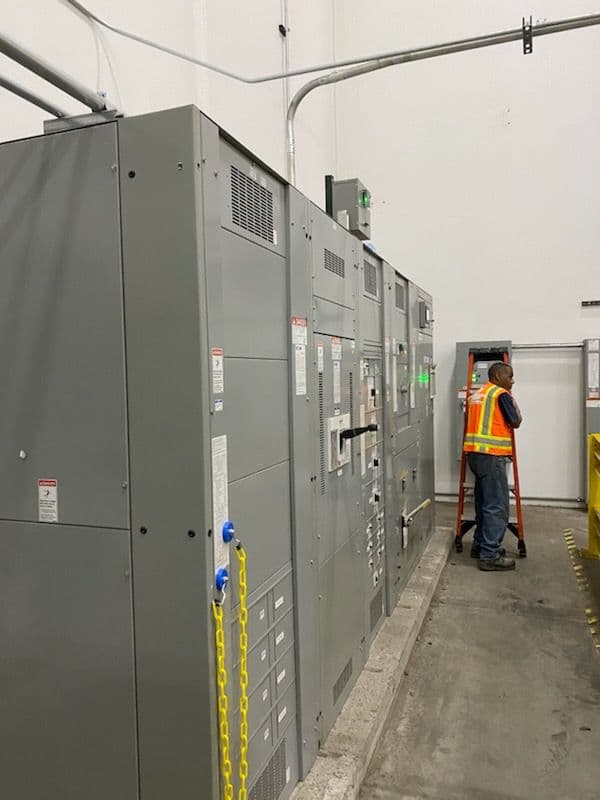

Here's what we were working with: a large industrial facility running Eaton Pow-R-Line switchboards, and the job was to get Eaton arc flash relay panels fully installed and integrated across the switchgear lineup. These units continuously monitor for the light signature of an arc flash event and trip the system almost instantly - well before a standard breaker would react. That kind of speed is what keeps equipment intact and, more importantly, keeps people safe.

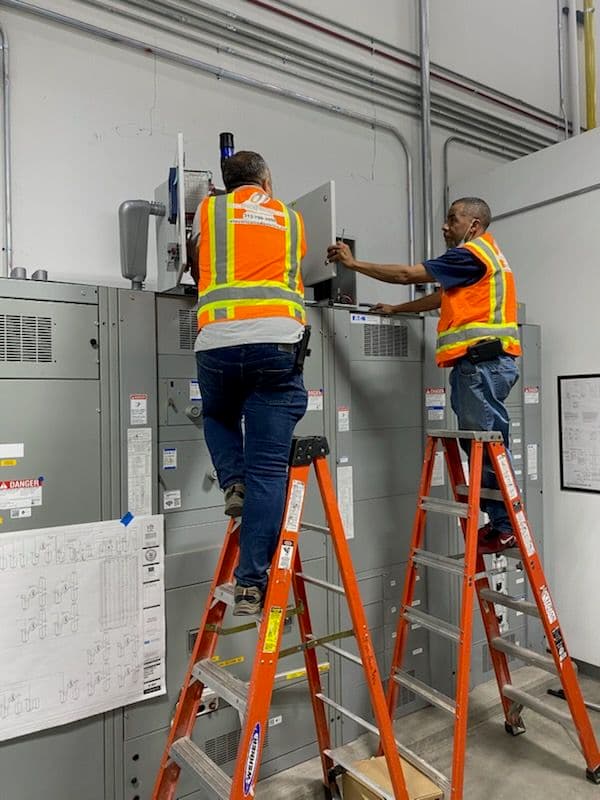

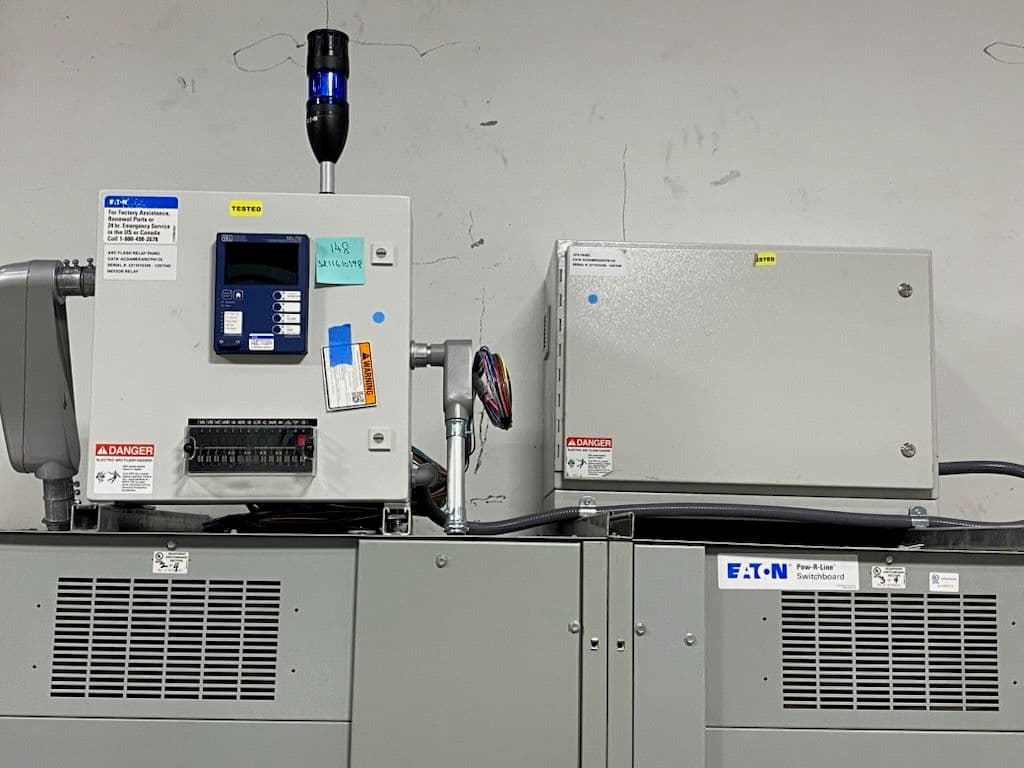

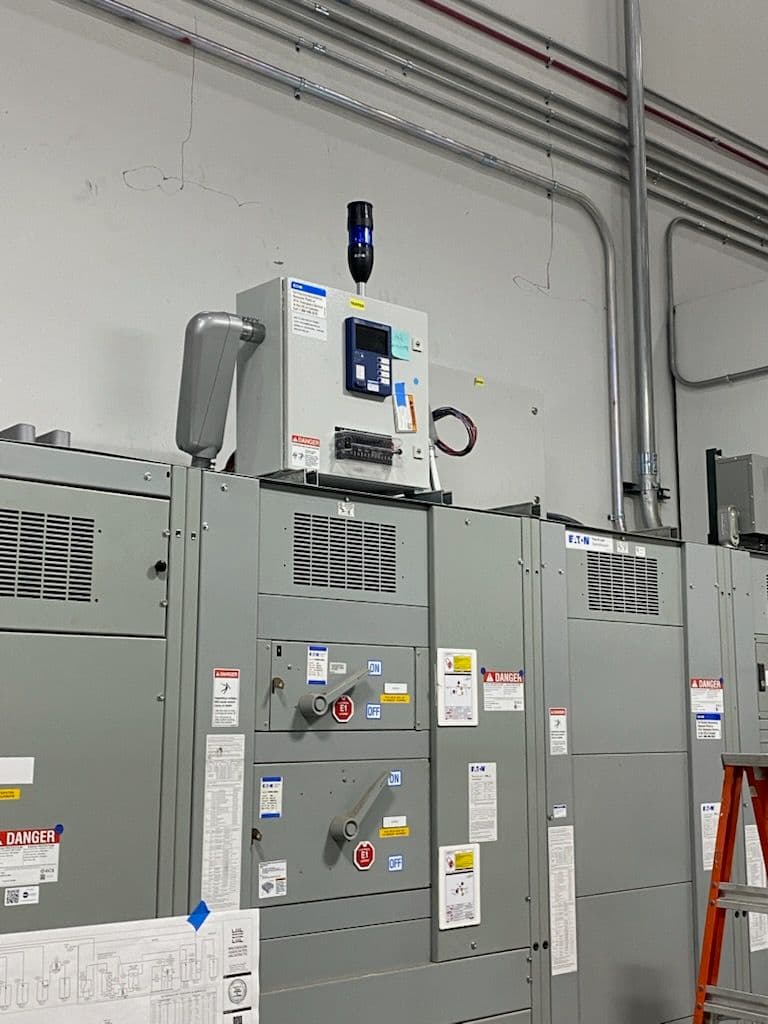

Our guys worked through the installation methodically - mounting the relay panels, running conduit, pulling wire, and making the connections clean and tight. You can see the blue indicator light on top of the relay panel, which serves as a visual status indicator for the system. Every connection point matters on a job like this. Sloppy wiring in a high-voltage environment isn't just bad work, it's dangerous.

What stands out about this kind of industrial electrical installation work is the level of precision it demands. Our team follows the drawings, verifies the testing, and doesn't move on until everything checks out. The 'TESTED' labels visible on the relay panels aren't just stickers - they represent a completed verification step that confirms the system is ready to do its job.

This is the type of work we do day in and day out as part of our industrial electrical installation services. High-stakes environments, complex equipment, and zero room for error. Whether it's arc fault protection, switchgear work, or full facility electrical builds, we bring the same level of focus to every job.
