Inside a High-Capacity Electrical Panel and Wiring Installation

Panel and wiring work at this scale is not something you hand off to just anyone. The margin for error is basically zero - one wrong connection in a high-capacity distribution setup can take down an entire facility or create a serious safety hazard. That's exactly why precision matters more than speed on jobs like this.

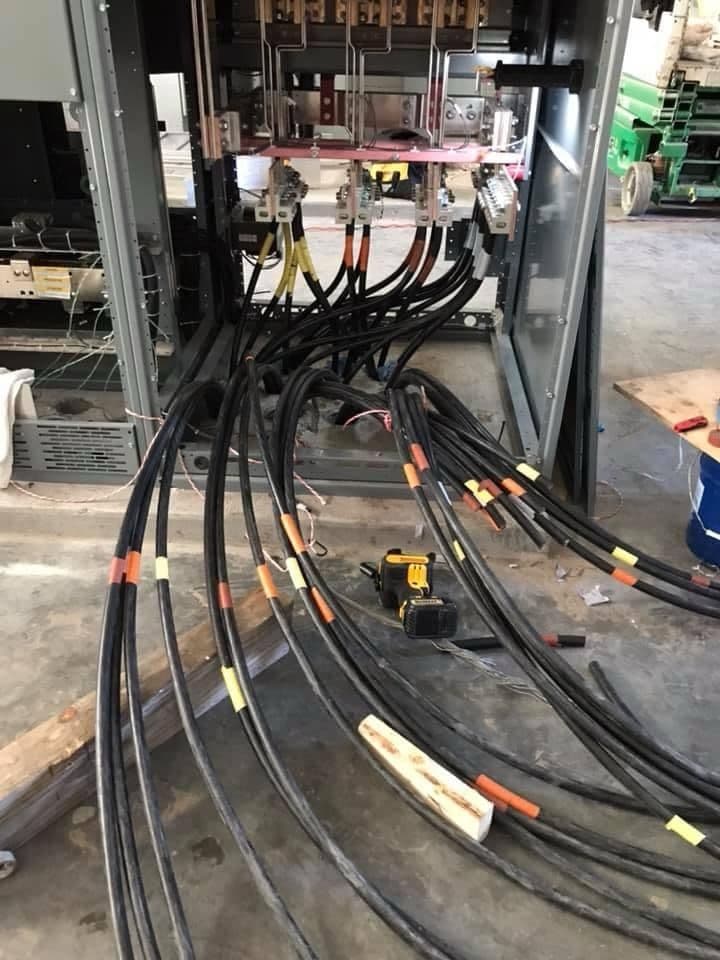

Here's what we were working with - a full commercial and industrial electrical installation involving multiple panels, large-gauge feeder cables, and a complex distribution setup that had to be done in stages. Each phase of the work had to be planned and executed in the right order. Pull the cables, label them, dress them properly, then terminate them with exact torque specs on every lug and connection point.

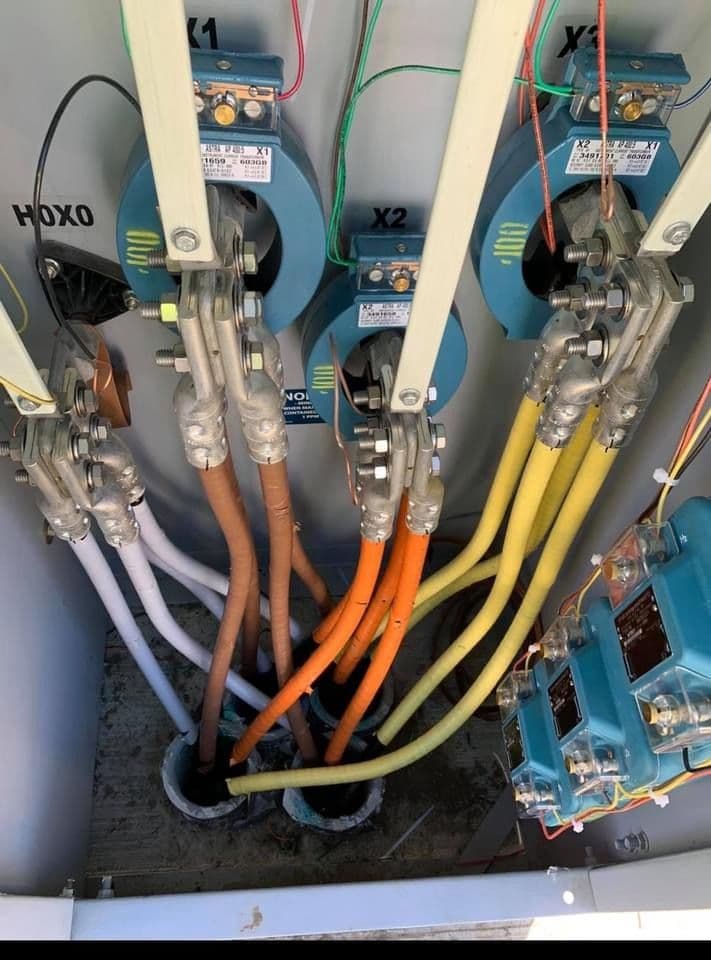

One of the things that separates a clean install from a problematic one is how the cables are managed before they ever land on a terminal. You can see the color-coded conductors - yellow, orange, brown, white - each one carefully routed and terminated through the current transformer assemblies. That's not just for looks. Proper cable dressing and phase identification makes future troubleshooting dramatically faster and reduces the risk of a mis-termination during or after the install.

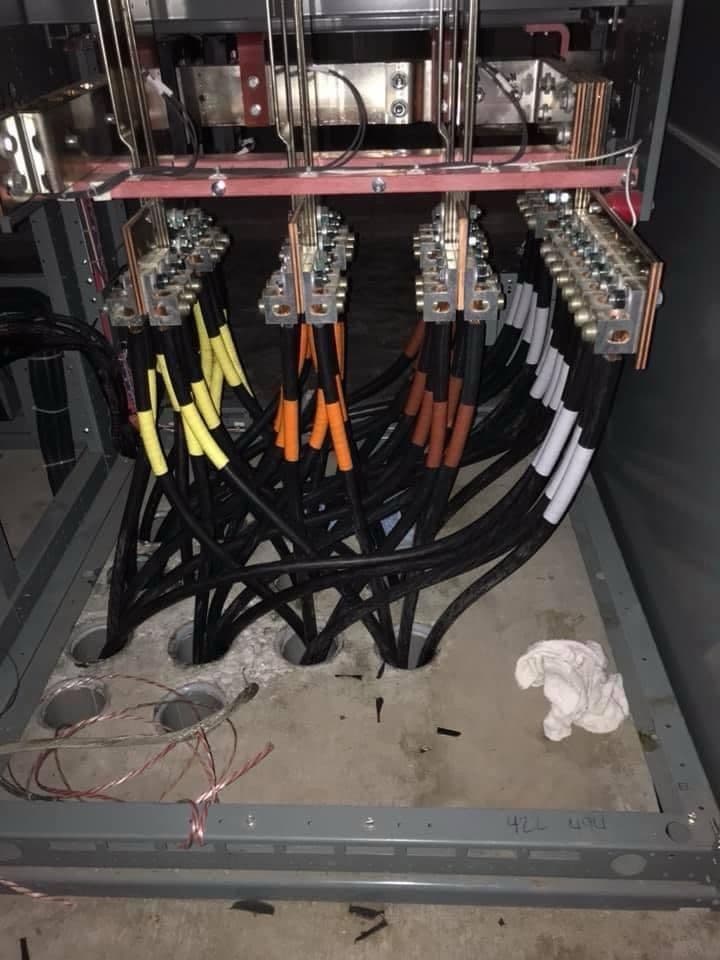

The feeder cables feeding the main switchgear are heavy. That kind of large-conductor work requires planning your bend radius, managing the weight of the cable, and making sure everything seats cleanly at the lugs. Rushed work at this stage shows up later as overheating connections or failed inspections. We don't cut corners on the things you can't see once the panel doors are closed.

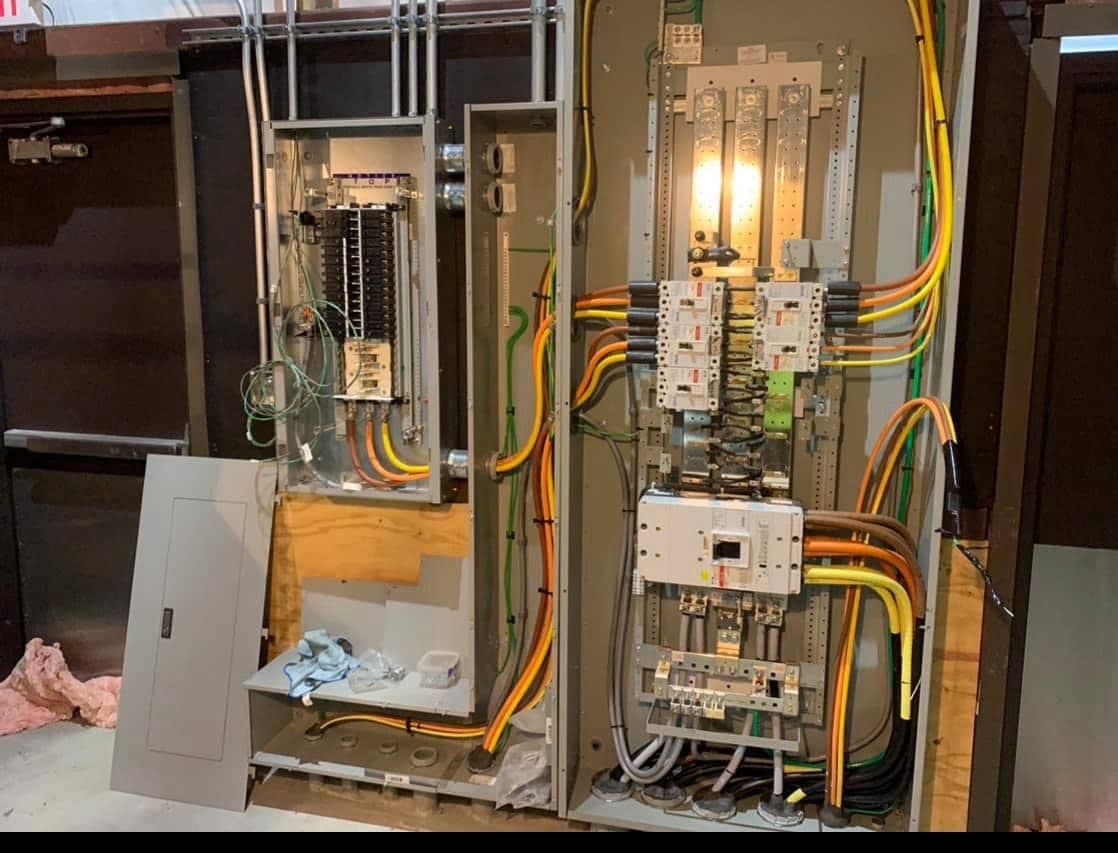

This is the kind of work our team does on commercial and industrial electrical installation jobs - methodical, code-compliant, and built to handle whatever load the facility demands. Whether it's a full electrical wiring installation from the ground up or a panel upgrade on an existing system, the process is the same: get it right the first time.
